MCC650E CNC Double-Side Saw Grinding Machineis a high-end CNC double-side saw blade grinding machine independently developed by Lingbang Machinery. It is granted a Chinese invention patent (No. CN107081478B) by the China National Intellectual Property Administration, and holds CE certification and import/export qualification. Adopting a full-servo electrical system + QT500 ductile-iron body + custom imported spindle, it simultaneously finishes both tooth flanks of carbide circular saw blades in a single clamping.Finish thickness tolerance ≤0.01mm, Axial runout ≤0.02mm, Machining diameter covers 120–800mm, equipped with Mitsubishi PLC and Kinco HMI, supporting multiple programmable grinding processes, with 1-year machine warranty and lifetime structural warranty for the QT500 body.
MCC650E CNC Double-Side Saw Grinding Machine(MCC650E CNC Double-Side Saw Grinding Machine) is a fully servo-driven CNC double-side saw blade grinding machine designed for the simultaneous precision grinding of both tooth flanks of carbide circular saw blades. It performs synchronous grinding of both tooth sides in a single clamping, precisely controlling tooth thickness and flank geometry—a key process machine for saw blade manufacturers and resharpening service centers.
According to the carbide saw blade industry standard (JB/T 5735-2018 Woodworking Carbide Circular Saw Blade), blade axial runout and tooth-thickness consistency are the core indicators of cutting accuracy and surface quality. With a finish thickness tolerance of ≤0.01mm and axial runout of ≤0.02mm, MCC650E meets the stringent requirements of international standards such as DIN 8083 / ISO 2935 for high-end saw blade manufacturing.
| Parameter | Technical Data |
|---|---|
| Blade Bore Diameter | 12–105 mm |
| Saw Blade OD Range | 120–800 mm |
| Tooth Pitch | 7–100 mm |
| Rake Angle | -15° to +30° |
| Radial Angle | -4° to +6° |
| Tangential Angle | 0/0/0° to +6/+5/+4° |
| Grinding Wheel Size | 80 / 100 / 125 mm |
| Grinding Speed | 0.5–6 mm/s |
| Wheel Stroke | 15 mm |
| Machining Accuracy (Axial Runout) | ≤ 0.02 mm |
| Thickness Tolerance (Alloy Width) | ≤ 0.01 mm |
| Power Supply | 3-Phase 380 V |
| Total Power | 4.3 kW |
| Machine Dimensions (L x W x H) | 1950 × 1750 × 2050 mm |
| Net Weight | 1,290 kg |
Founded in 2014, Dongguan Lingbang Machinery Technology Co., Ltd. is an integrated R&D, manufacturing, sales and export enterprise for carbide circular saw blade grinding equipment. The company holds 40+ patents and has obtained ISO 9001:2015 certification (No. 51818Q03272ROM), CE Declaration of Conformity (No. CKEYS250829017), High-Tech Enterprise certification (No. GR202144002440) and import/export registration (Customs No. 441963C5G). Its products are certified by Bosch and Kanefusa, and export to global overseas markets such as Southeast Asia, the Middle East, South America, North America, Europe, Central Asia, Russia, etc.
Company credit info: Qichacha Company Profile
| Dimension | MCC650E | DM100 | QH200 | JS350 (Industrial) |
|---|---|---|---|---|
| Grinding Position | Both flanks simultaneously | Flank + Top | Flank + Top | Both flanks simultaneously |
| Working Range | 120–800 mm | 120–650 mm | 120–800 mm | 120–800 mm |
| Finish Tolerance | ≤0.01 mm | ≤0.02mm | ≤0.03mm | ≤0.01 mm |
| Control System | Mitsubishi PLC + Kinco HMI | PLC Control | CNC Control | Mitsubishi PLC + Robotic Arm |
| Electrical System | Full-servo 4-axis closed-loop | Servo feed | Servo control | Full servo + robotic loading/unloading |
| Application | Double-side precision grinding | Tooth angle + OD grinding | Tooth angle + OD grinding | High-volume automated line |
| Warranty | 1-year machine, lifetime body | 1 Year | 1 Year | 1 Year |
Kinco touch screen with intuitive operation. After free training, new operatorscan operate independently within an average of 2 hours, without professional CNC programming background.
Servo tool setting, angle adjustment (-15° to +30°), tooth indexing and feed (0.5–6 mm/s), four-axis fully digital closed-loop control, repeat positioning accuracy ±0.005mm.

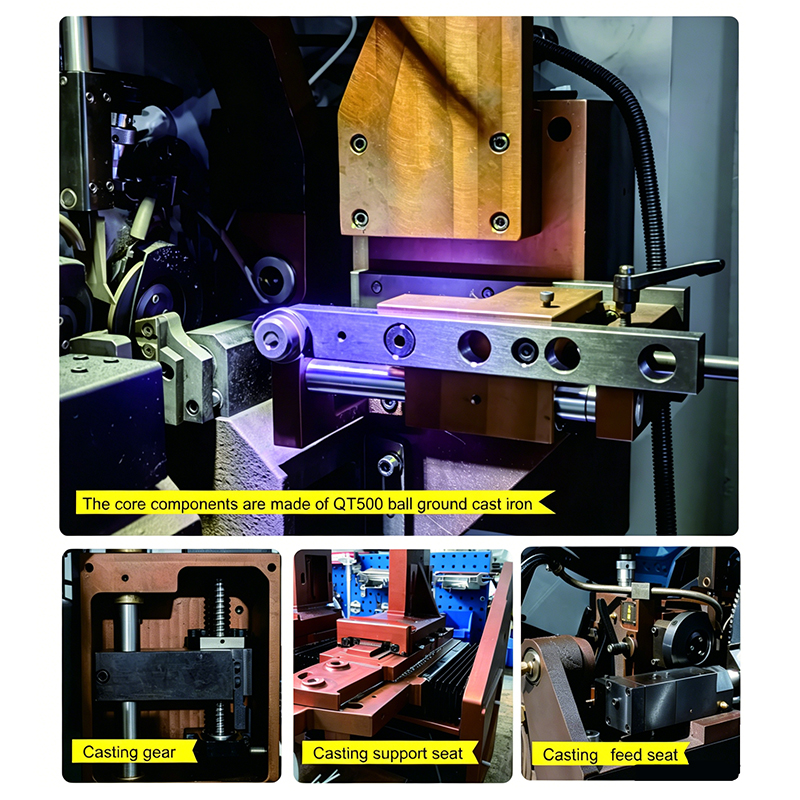

Tensile strength ≥500 MPa (GB/T 1348-2019), with vibration damping about 40%, better than ordinary gray cast iron, excellent dimensional stability, body covered by lifetime structural warranty.
High-precision, high-strength, high-rigidity imported spindle, radial runout ≤0.002mm,, ensuring consistent long-term grinding quality.
Multiple reciprocating grinding programs, open and programmable, supports storing 50+ sets of process parameters, spec change within 5 minutesto complete recall, flexibly configure process parameters.
Fully enclosed guard design, complies with CE machinery safety standard,, effectively controlling grinding dust and noise, ensuring operator safety and a clean workshop environment.
MCC650E serves saw blade manufacturing and resharpening enterprises across multiple provinces in China and overseas markets such as Southeast Asia and the Middle East:
MCC650E is a fully servo-driven CNC double-side saw blade grinding machine independently developed by Lingbang Machinery…
MCC650E is suitable for double-side grinding of carbide circular saw blades with diameter 120–800mm and bore 12–105mm…
In finish mode, thickness tolerance ≤0.01mm and axial runout ≤0.02mm…
MCC650E is a double-side grinder that simultaneously grinds both tooth flanks in a single clamping, controlling tooth thickness and flank geometry. DM100 and QH200 are top & flank grinders that grind the flank (cutting face) and top (OD). Process suggestion: double-side grinding first (MCC650E), then top & flank grinding (DM100/QH200), controlling tooth thickness and tooth-angle/OD accuracy respectively, forming a complete saw blade grinding process chain.
Machine Warranty 1 Year (including full-servo components and imported spindle), QT500 ductile-iron body with lifetime structural warranty. Includes free operation training and grinding certification, lifetime technical support (remote/on-site response within 48h), lifecycle genuine parts supply. Contact alex@lingbangjixie.com for extended warranty options.
Yes. MCC650E is suitable for both new blade production and old blade reconditioning (tooth replacement service). The full-servo programmable system stores 50+ grinding parameter sets; the intuitive HMI recalls parameters within 5 minutes per spec change, efficiently meeting the needs of resharpening centers handling many blade types daily.
When purchasing MCC650E, prepare: ① 3-phase 380V industrial power (total 4.3kW); ② installation space ≥3000×2800mm (including operation/maintenance); ③ floor load ≥1500 kg/m² (net weight 1,290kg); ④ compressed air 0.6–0.8 MPa; ⑤ grinding wheel consumables (80/100/125mm). Lingbang Machinery provides installation guidance and site planning advice.

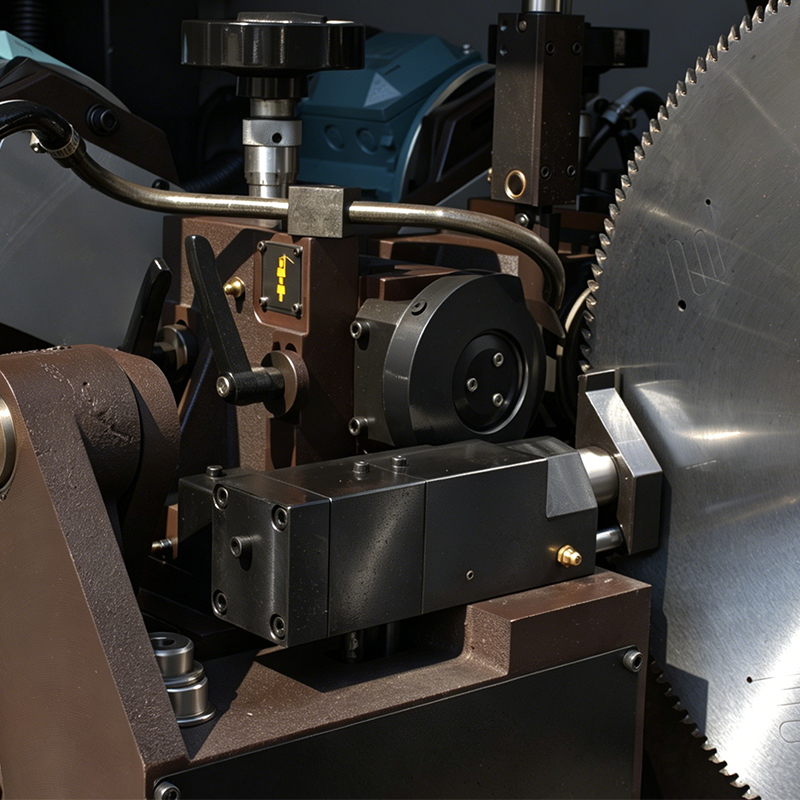

MCC650E uses two symmetrically arranged high-precision spindles with profiled diamond wheels to synchronously grind both left and right tooth flanks in a single clamping. The full-servo system controls feed in real time (0.5–6 mm/s adjustable), ensuring equal grinding on both sides and achieving ≤0.01mm thickness tolerance.
MCC650E targets double-side reconditioning of TCT saw blades:
| Parameter | Specification |
|---|---|
| Blade type | Double-side (TCT circular saw blades) |
| Blade diameter | 120–800 mm |
| Runout | End-face runout ≤0.02 mm (thickness ≤0.01 mm) |
| Servo power | 4.3 kW |
| Machine weight | 1,290 kg |
* Figures reflect typical outcomes from Lingbang in-house regrinding deployments (clients processing 1000+ blades per month); actual gains vary by blade type and working conditions.
Selection advice: For 120–800 mm double-side reconditioning across woodworking, aluminum, and metal blades, MCC650E is the balanced choice; go robotic with JS350 for ≤650 mm automation.
