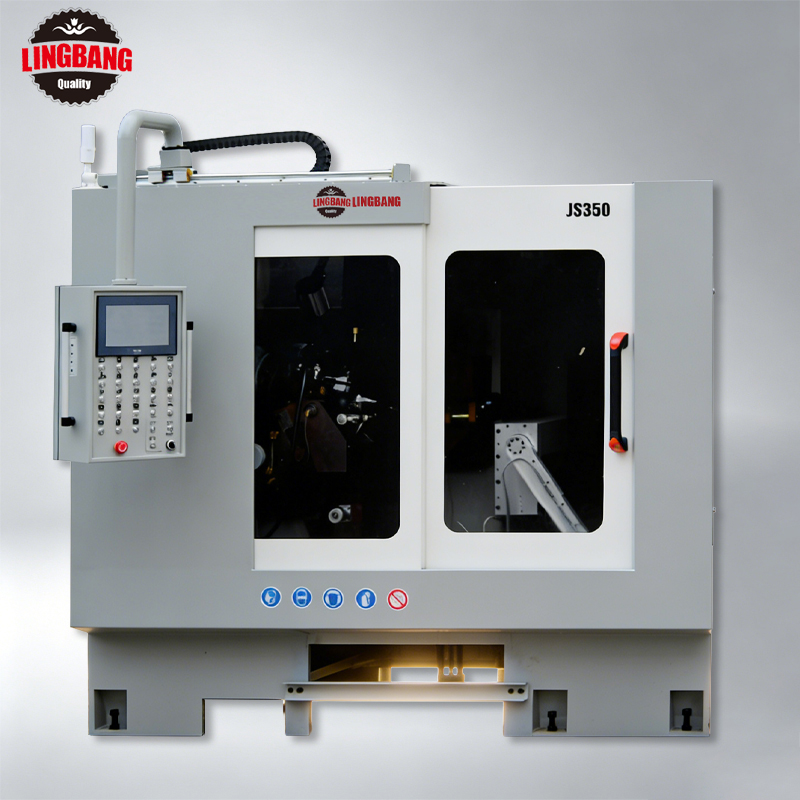

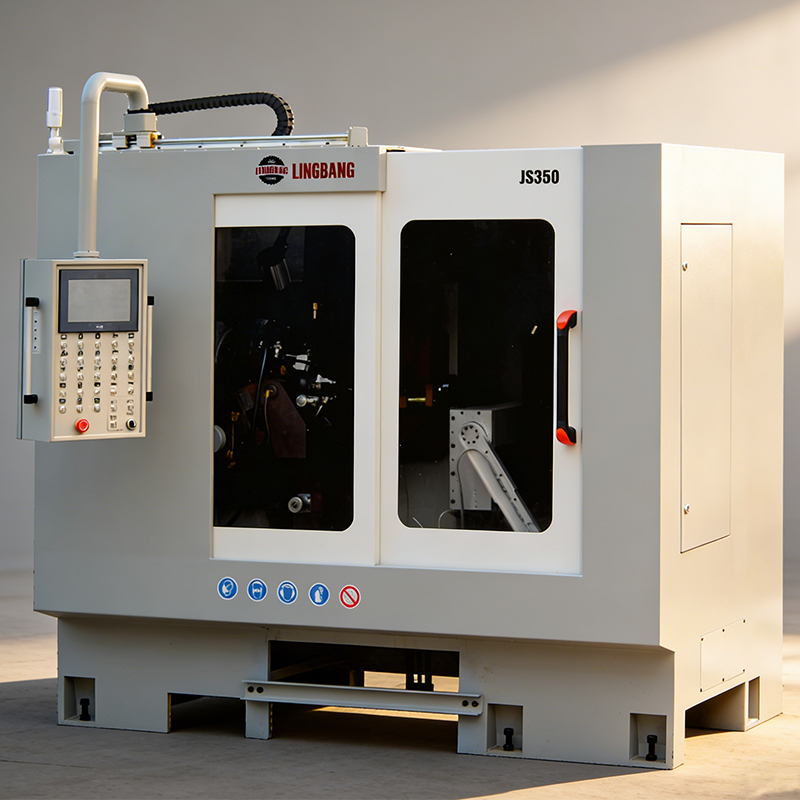

JS350 Double Side Grinding Machine – Industrial Full-Servo Type with Robot Arm is a high-end CNC double-side saw blade grinder independently developed by Lingbang Machinery.The equipment holds a Chinese Invention Patent granted by the National Intellectual Property Administration (Patent No.: CN107081478B), and has obtained CE certification as well as import & export qualifications.It adopts a full-servo electrical system, QT500 ductile iron frame and custom imported spindle. Precision grinding on both tooth backs of TCT circular saw blades can be completed simultaneously in a single clamping.The finished tooth thickness tolerance ≤0.02 mm and axial runout ≤0.02 mm, covering saw blade machining diameters from120 mm to 450 mm.Equipped with Panasonic PLC and Kinco Human-Machine Interface (HMI), the machine supports multiple programmable grinding processes.It comes with a 1-year full machine warranty, while the QT500 machine frame enjoys lifetime structural warranty.
JS350 Double Side Grinding Machine – Industrial Full-Servo Type with Robot Arm is a fully servo-driven CNC double-side saw blade grinding machine designed for the simultaneous precision grinding of both tooth flanks of carbide circular saw blades. It performs synchronous grinding of both tooth sides in a single clamping, precisely controlling tooth thickness and flank geometry—a key process machine for saw blade manufacturers and resharpening service centers.

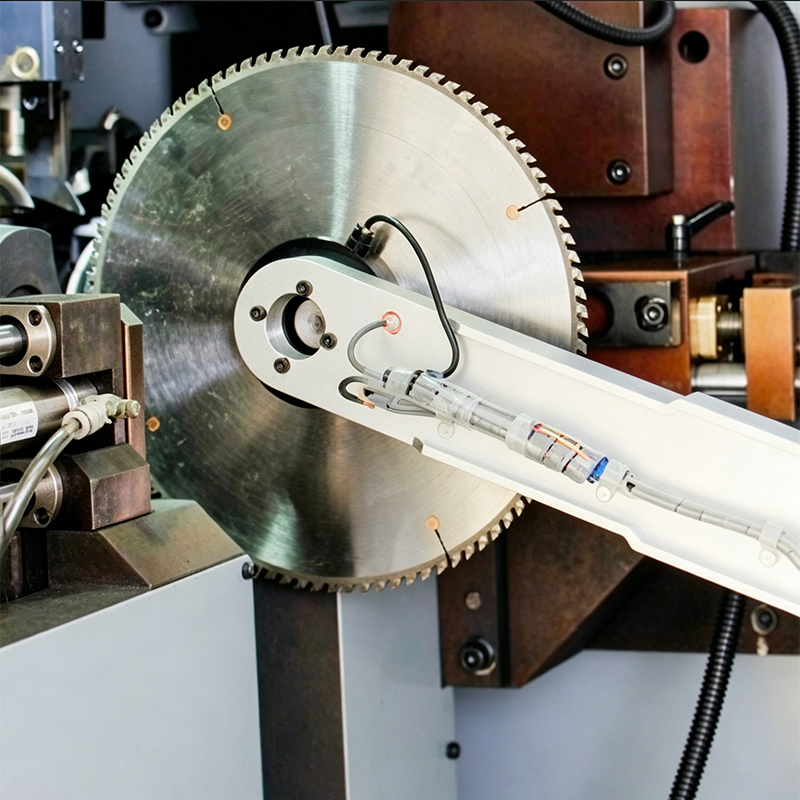

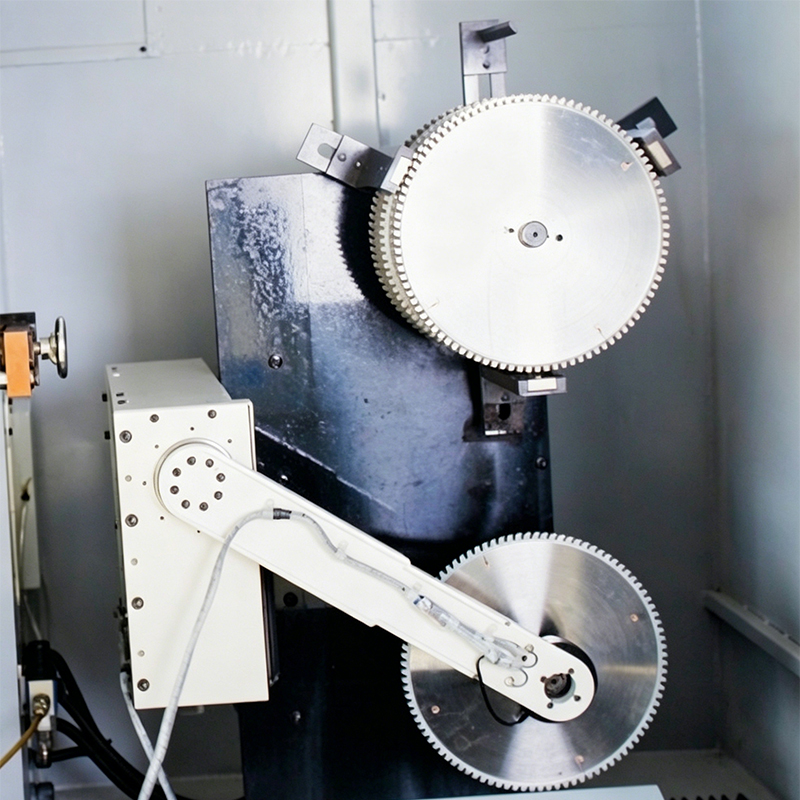

Close-up: Automatic Saw Blade Loading & Unloading
According to the carbide saw blade industry standard (JB/T 5735-2018 Woodworking Carbide Circular Saw Blade), blade axial runout and tooth-thickness consistency are the core indicators of cutting accuracy and surface quality. With a finish thickness tolerance of ≤0.01mm and axial runout of ≤0.02mm, JS350 meets the stringent requirements of international standards such as DIN 8083 / ISO 2935 for high-end saw blade manufacturing.
| Parameter | Technical Data |
|---|---|
| Blade Bore Diameter | 12–105 mm |
| Saw Blade OD Range | 120–450 mm |
| Tooth Pitch | 7–100 mm |
| Rake Angle | -15° to +30° |
| Radial Angle | -4° to +6° |
| Tangential Angle | 0/0/0° to +6/+5/+4° |
| Grinding Wheel Size | 80 / 100 / 125 mm |
| Grinding Speed | 0.5–6 mm/s |
| Wheel Stroke | 15 mm |
| Machining Accuracy (Axial Runout) | ≤ 0.02 mm |
| Thickness Tolerance (Alloy Width) | ≤ 0.01 mm |
| Power Supply | 3-Phase 380 V |
| Total Power | 4.3 kW |
| Machine Dimensions (L x W x H) | 1950 × 1750 × 2050 mm |
| Net Weight | 1,290 kg |
Founded in 2014, Dongguan Lingbang Machinery Technology Co., Ltd. is an integrated R&D, manufacturing, sales and export enterprise for carbide circular saw blade grinding equipment. The company holds 40+ patents and has obtained ISO 9001:2015 certification (No. 51818Q03272ROM), CE Declaration of Conformity (No. CKEYS250829017), High-Tech Enterprise certification (No. GR202144002440) and import/export registration (Customs No. 441963C5G). Its products are certified by Bosch and Kanefusa, and exported to Southeast Asia, the Middle East and other overseas markets.
Company credit info: Qichacha Company Profile
| Dimension | JS350(Robot Arm) | DM100 | QH200 | MCC650E (Industrial) |
|---|---|---|---|---|
| Grinding Position | Both flanks simultaneously | Flank + Top | Flank + Top | Both flanks simultaneously |
| Working Range | 120–450 mm | 120–650 mm | 120–800 mm | 120–800 mm |
| Finish Tolerance | ≤0.02mm | ≤0.02mm | ≤0.03mm | ≤0.01 mm |
| Control System | Mitsubishi PLC + Kinco HMI | PLC Control | CNC Control | Mitsubishi PLC + Robotic Arm |
| Electrical System | Full-servo 4-axis closed-loop | Servo feed | Servo control | Full servo + robotic loading/unloading |
| Application | Double-side precision grinding | Tooth angle + OD grinding | Tooth angle + OD grinding | High-volume automated line |
| Warranty | 1-year machine, lifetime body | 1 Year | 1 Year | 1 Year |
Kinco touch screen with intuitive operation. After free training, new operatorscan operate independently within an average of 2 hours, without professional CNC programming background.
Servo tool setting, angle adjustment (-15° to +30°), tooth indexing and feed (0.5–6 mm/s), four-axis fully digital closed-loop control, repeat positioning accuracy ±0.005mm.
Tensile strength ≥500 MPa (GB/T 1348-2019), with vibration damping about 40%, better than ordinary gray cast iron, excellent dimensional stability, body covered by lifetime structural warranty.
High-precision, high-strength, high-rigidity imported spindle, radial runout ≤0.002mm,, ensuring consistent long-term grinding quality.
Multiple reciprocating grinding programs, open and programmable, supports storing 50+ sets of process parameters, spec change within 5 minutesto complete recall, flexibly configure process parameters.
Fully enclosed guard design, complies with CE machinery safety standard,, effectively controlling grinding dust and noise, ensuring operator safety and a clean workshop environment.
GMP2500 serves saw blade manufacturing and resharpening enterprises across multiple provinces in China and overseas markets such as Southeast Asia and the Middle East:
A: JS350 is a fully servo-driven CNC double-side saw blade grinding machine ,Featuring a full-servo and lead-screw driven built-in robotic arm, the JS350 supports automatic loading and unloading and 24-hour continuous operation. The robotic working range covers 120–450 mm, and the machine can process saw blades up to 650 mm in diameter.
A: JS350 is Double-sided grinding of hard alloy circular saw blades with diameters ranging from 120 to 450mm and hole diameters from 20 to 80mm, suitable for automated robotic operations
A: In finish grinding mode, tooth thickness tolerance ≤0.01 mm and axial runout ≤0.02 mm.
A: The JS350 is a robotic double-side grinder, which simultaneously grinds both tooth flanks in a single clamping to control tooth thickness and tooth flank geometry. DM100 and QH200 are standalone tooth tip & flank grinders for cutting face and tooth tip (outer diameter) machining.
The optimal configuration is one JS350 matched with two JX350 units for maximum production efficiency.
Process recommendation: Complete double-side grinding on JS350 first, then carry out tooth tip & flank finishing on JX350. The three machines separately control tooth thickness, tooth angle and tooth surface grinding, forming a complete saw blade grinding production line.
A: 1-year full machine warranty (covering full-servo components and imported spindle). The QT500 ductile iron machine frame enjoys lifetime structural warranty. We provide free operation training and grinding technical guidance, lifelong technical support (remote or on-site response within 48 hours), and long-term supply of original spare parts. Contact alex@lingbangjixie.com for extended warranty options.
A: No. The JS350 is designed for mass production of new saw blades and supports 24-hour non-stop operation. For reconditioning used saw blades (finishing after tooth brazing), inconsistent dimensions of refurbished blades cannot meet unified processing standards.
A: Prepare the following conditions in advance:
① 3-phase 380V industrial power supply (total power: 5.8 kW);
② Installation space ≥2500 × 2800 mm (reserve space for operation and maintenance);
③ Floor bearing capacity ≥2000 kg/m² (machine net weight: 3250 kg);
④ Stable compressed air of 0.6–0.8 MPa;
⑤ Grinding wheel consumables (specifications: 80/100/125 mm).
Lingbang Machinery provides installation guidance and workshop layout planning suggestions.
A: The JS350 is equipped with two symmetrically arranged high-precision spindles fitted with profiled diamond grinding wheels. It synchronously grinds left and right tooth flanks in a single clamping. The full-servo system realizes real-time feed control (feed speed adjustable from 0.5–6 mm/s), ensuring uniform grinding removal on both sides and achieving tooth thickness tolerance down to ≤0.01 mm.
