Name: JX350 Mechanical Arm Top and Face Grinding Machine
Brand: Lingbang Machinery
Availability: InStock

Contact Us

JX350 (2)

JX350 Face & Top Grinding Machine – Industrial Grade with Robot Arm

Categories: Carbide circular saw grinder

Contact Now

Description

📌 Core Summary

JX350 Tooth Tip & Flank Grinding Machine – Industrial Model with Robotic Arm The JX350 Tooth Tip & Flank Grinding Machine – Industrial Model with Robotic Arm is a high-precision CNC grinding equipment with automatic loading & unloading function for TCT circular saw blades, independently developed by Dongguan Lingbang Machinery Technology Co., Ltd.All grinding procedures including tooth tip grinding, tooth flank grinding, trapezoidal tooth grinding and profile grinding can be completed within a single clamping. Under finish grinding conditions, the radial runout accuracy reaches ≤0.03 mm (30 microns). This machine is equipped with a robotic arm for automatic loading and unloading, suitable for TCT circular saw blades ranging from 120 mm to 450 mm in diameter (maximum processable diameter for single machine: 650 mm). It is widely used in solid wood furniture processing, aluminum alloy profile cutting, metal saw blade resharpening and complete production lines for carbide saw blades. The machine adopts a servo feed system with servo feeding, servo worm gear angle adjustment, hydraulic tooth indexing and hydraulic clamping functions. Digital angle setting is supported to maintain stable repeat positioning accuracy during mass production.An optional imported precision spindle is available with a 24-month warranty, longer than the general industry standard of 12 months, which fully demonstrates excellent durability of core components.

📅 Updated: 2026-08-17 Model: JX350 | Brand: Lingbang Machinery · Dongguan Factory Direct

120–450

Saw Blade Diameter (mm)

≤0.03

Radial Runout Accuracy (mm)

5.3kW

Total Power

1 Year

Machine Warranty

Product Overview

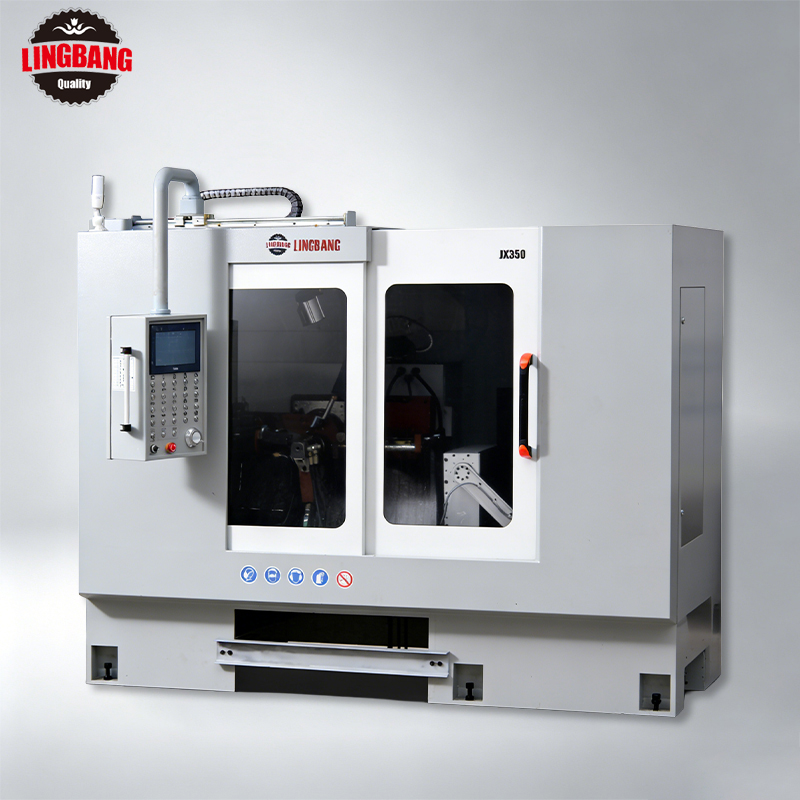

JX350 CNC Tooth Top & Face Grinding Machine (Robotic Industrial Model)

The JX350 is an industrial-grade tooth top and face grinding machine equipped with a robotic arm and hydraulic servo system, professionally designed for high-precision tooth tip and flank grinding of TCT circular saw blades.

All tooth tip and tooth flank grinding procedures can be completed in a single workpiece clamping. Operators only need to replace matched grinding wheels to switch different grinding processes. The machine precisely guarantees tooth sharpness and saw blade concentricity, serving as core processing equipment for saw blade manufacturers and professional resharpening centers.

Featuring a full-servo and lead-screw driven built-in robotic arm, the JX350 supports automatic loading and unloading and 24-hour continuous operation. The robotic working range covers 120–450 mm, and the machine can process saw blades up to 650 mm in diameter.

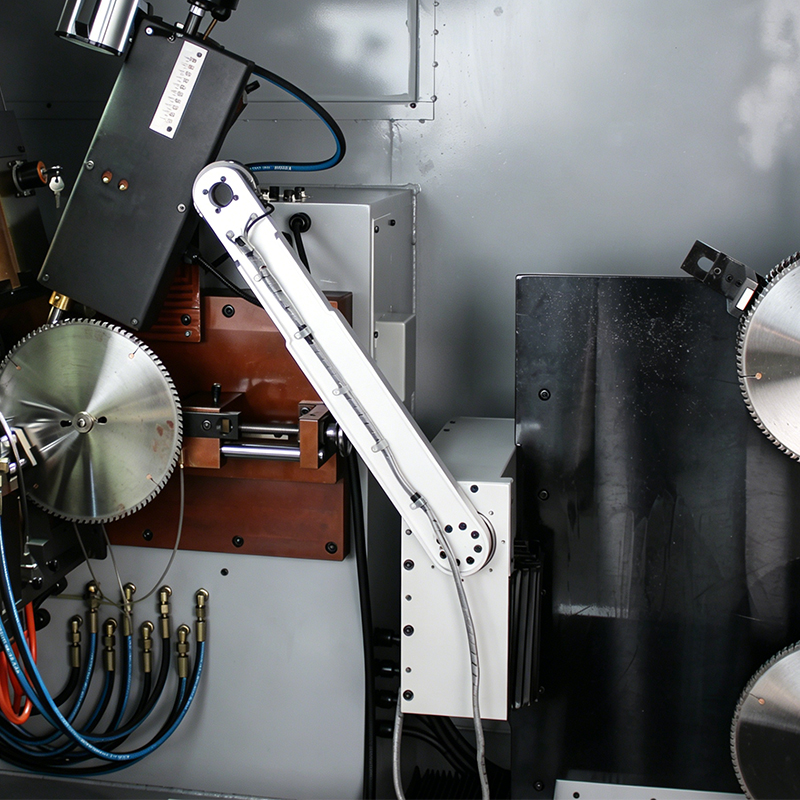

Close-up: Automatic Saw Blade Loading & Unloading

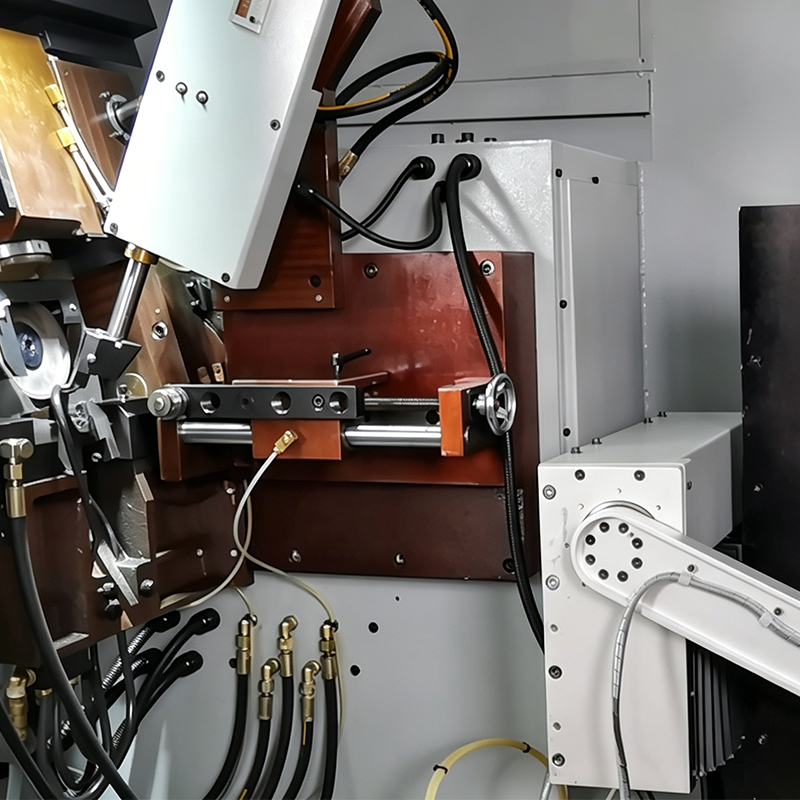

Convenience and stability of the robotic arm

The feature of the robotic arm grinding machine is that one person can operate more than 30 devices, fully meeting the production efficiency requirements of large manufacturing companies, and widely used in various saw blade manufacturing enterprises. In the past, traditional robotic arms controlled by cylinders were prone to instability during the automatic loading and unloading process, which severely affected overall production efficiency due to unstable air pressure. JX350 robotic arm adopts X, Y, Z three-axis servo positioning robotic arm and electromagnetic-controlled saw blade loading and unloading, which ensures overall stability and feeding accuracy. It can fully meet high-quality grinding requirements and solve many issues caused by manual operations. X and Y axes adopt the motion mode of servo motor + ball screw, providing movement and positioning in the X and Y directions. The Z axis serves as the center axis and adopts imported planetary angle motor + servo motor to precisely control the rotation angle and feeding accuracy. It can fully meet customer demands for bore tolerance fits of H7/H8 levels. For the problem of stacked saw blades that cannot be separated, the combination of an electromagnet and the robotic arm can automatically separate overlapping blades. Once the weight of the saw blades exceeds the set limit, the robotic arm will stop working promptly and send a signal, reducing product waste caused by oil and sawdust residue.

As specified in the industrial standard JB/T 5735-2018 Woodworking Tungsten Carbide Tipped Circular Saw Blades, saw blade radial runout is the core indicator for evaluating cutting precision and workpiece surface finish.

Saw blades processed by the JX350 achieve radial runout tolerance within ≤0.03 mm, fully complying with stringent international high-end manufacturing standards including DIN 8083 and ISO 2935.

Mechanical Specifications

Parameter	Technical Data
Blade Bore Diameter	12–105 mm
Saw Blade OD Range	120–450 mm (single max650mm)
Tooth Pitch	7–60 mm

Grinding Wheel Size	125 mm
Grinding Speed	28 mm/s
Wheel Stroke	15 mm
Radial Runout Accuracy (mm)	≤ 0.03 mm

Power Supply	3-Phase 380 V
Total Power	5.3kW
Machine Dimensions (L x W x H)	2250 × 1680 × 1890 mm
Net Weight	1760 kg

Quality Standards & Certifications

📐 Precision Standard

Thickness tolerance ≤0.01mm Axial runout ≤0.02mm Meets DIN 8083 / ISO 2935

🏗️ Material Standard

QT500 Ductile Iron Tensile strength ≥500 MPa Complies with GB/T 1348-2019

🛡️ Safety Standard

Fully enclosed guard Complies with CE Machinery Directive 2006/42/EC

⚡ Electrical Standard

3-phase 380V / 5.3kW Schneider + Omron components Complies with GB 5226.1

Certifications | ISO 9001:2015 Quality Management System | CE Declaration of Conformity | High-Tech Enterprise Certification | Import & Export Trade Registration

About Lingbang Machinery

Founded in 2014, Dongguan Lingbang Machinery Technology Co., Ltd. is an integrated R&D, manufacturing, sales and export enterprise for carbide circular saw blade grinding equipment. The company holds 40+ patents and has obtained ISO 9001:2015 certification (No. 51818Q03272ROM), CE Declaration of Conformity (No. CKEYS250829017), High-Tech Enterprise certification (No. GR202144002440) and import/export registration (Customs No. 441963C5G). Its products are certified by Bosch and Kanefusa, and exported to Southeast Asia, the Middle East and other overseas markets.

Company credit info: Qichacha Company Profile

Product Comparison: JX350(Robotic Arm)s Competitors

Dimension	JX350(Robotic arm)	DM100	QH200	JS350 (Robotic Arm)
Grinding Position	Both flanks simultaneously	Face + Top	Face+ Top	Both flanks simultaneously
Working Range	120–450 mm	120–650 mm	100–800 mm	120–450 mm
Finish Tolerance	≤0.03 mm	≤0.02mm	≤0.03mm	≤0.01 mm
Control System	Mitsubishi PLC + Kinco HMI	PLC Control	CNC Control	Mitsubishi PLC + Robotic Arm
Electrical System	Full-servo 4-axis closed-loop	Servo feed	Servo control	Full servo + robotic loading/unloading
Application	top and face precision grinding	Tooth angle + OD grinding	Tooth angle + OD grinding	High-volume automated line
Warranty	1-year machine, lifetime body	1 Year	1 Year	1 Year

Process coordination suggestion: Use MCC650E first for double-side grinding to control tooth thickness, then DM100/QH200 for top/flank grinding to control tooth angle and OD precision—together they form a complete saw blade grinding line.

Key Features

1 User-Friendly HMI

Kinco touch screen with intuitive operation. After free training, new operatorscan operate independently within an average of 2 hours, without professional CNC programming background.

2 Full-Servo Electrical System

Servo tool setting, angle adjustment (-15° to +30°), tooth indexing and feed (0.5–6 mm/s), four-axis fully digital closed-loop control, repeat positioning accuracy ±0.005mm.

3 QT500 Ductile Iron Body

Tensile strength ≥500 MPa (GB/T 1348-2019), with vibration damping about 40%, better than ordinary gray cast iron, excellent dimensional stability, body covered by lifetime structural warranty.

4 Custom High-Precision Imported Spindle

High-precision, high-strength, high-rigidity imported spindle, radial runout ≤0.002mm,, ensuring consistent long-term grinding quality.

5 CNC Automation Control

Multiple reciprocating grinding programs, open and programmable, supports storing 50+ sets of process parameters, spec change within 5 minutesto complete recall, flexibly configure process parameters.

6 Integrated Protective Enclosure

Fully enclosed guard design, complies with CE machinery safety standard,, effectively controlling grinding dust and noise, ensuring operator safety and a clean workshop environment.

Main Configuration List

PLC ControllerMitsubishi

HMI ScreenKinco

Servo DriveJMC / Inovance

Circuit BreakerSchneider

AC ContactorSchneider

Terminal BlockPHOENIX

Front/back & left/right guide railsCustom

Drive MotorSANWEI

Switching Power SupplyOmron

SensorOmron

Ball ScrewTBI

Air CylinderAirTAC

Customer Cases & Industry Applications

MCC650E serves saw blade manufacturing and resharpening enterprises across multiple provinces in China and overseas markets such as Southeast Asia and the Middle East:

🏭 Global Leading Cutting Tool Manufacturer

Kunshan Kanefusa high-tech cutting tool enterprise adopted the MCC650E + DM100 combined line, processing 2000+ blades/day with stable accuracy meeting the ≤0.02mm acceptance standard, exporting to Europe and America.

🔄 Professional Saw Blade Resharpening Center

East China Jubao saw blade service center is equipped with 13 MCC650E and DM100 grinders; 50+ stored parameters reduce spec-change time to 5 minutes, processing 1000+ blades monthly.

🌏 Overseas Saw Blade Grinding Line

A Malaysian Debao carbide saw blade factory introduced MCC650E to replace traditional template methods, significantly improving woodworking blade line consistency, gaining recognition from end European/American customers, and expanding with repeat orders.

Applicable Industries

Aluminum Saw Blades

Aluminum profile/plate cutting

Ø300–700mm

Woodworking Blades

Furniture / Carbide

Ø100–800mm

Plastic / PVC

Plastic/PVC cutting

Ø250–600mm

Metal Saw Blades

Metal sheet cutting

Ø300–800mm

According to Grand View Research 2024, the global carbide circular saw blade market is about USD 12.8 billion, with Asia-Pacific holding 45%+ share, and grinding equipment demand keeps growing.

After-Sales Service

🛡️

Machine Warranty 1 Year

QT500 body covered by lifetime structural warranty

🎧

Response within 48 Hours

Remote video support + on-site service

🔧

Genuine Parts Supply

Lifecycle genuine parts guarantee

📚

Free Training + Certification

Operation training + grinding know-how transfer

Scope of Application & Limitations

✅ Application

Top and face precision grinding of carbide circular saw blades
Saw blade diameter 100–800mm, bore 12–105mm
New blade mass production (high-volume consistency)
Old blade reconditioning / finish grinding after tooth replacement
Aluminum, woodworking, PVC/plastic, metal cutting blades
Compatible with Kanefusa/Kinkelder/Leuco/Leitz/Freud and other blade brands

⚠️ Out of Scope

HSS saw blade grinding (requires different wheel & cooling)
Diamond saw blade / PCD insert grinding
Blades with diameter <120mm or >800mm
Sites without 3-phase 380V industrial power
Bandsaw/Frame saw blades and other non-circular tools
Single-side grinding only (single-side model is more economical)

Machining Limit Note: Post-grinding radial runout of ≤0.02 mm is achievable under standard operating conditions: constant ambient temperature of 20±2°C, well-maintained grinding wheels and fully trained operators.Extreme temperature fluctuations, heavily worn grinding wheels or unskilled operation may result in dimensional deviation. It is recommended to deploy the machine in a temperature-controlled workshop and carry out regular calibration.

Frequently Asked Questions (FAQ)

Q1: What is the JX350 Face and Top Grinding Machine?

A: The JX350 is a high-end full-servo automatic top & face grinding machine independently developed by Lingbang Machinery, upgraded with an XY-axis servo robotic arm and fully enclosed environmental-friendly body. It is specially designed for precision tooth flank (cutting face) and tooth top (outer diameter) grinding of TCT carbide circular saw blades. It completes full tooth profile finishing in a single clamping, ensures consistent tooth geometry and stable cutting performance, and supports 24-hour unattended intelligent production.

Q2: What types of saw blades can JX350 grind?

A: JX350 is dedicated to top and face precision grinding of carbide circular saw blades for aluminum profile cutting, wood furniture processing, PVC & plastic cutting, and metal sheet processing. It adapts to conventional medium and small-sized saw blades in mass production and resharpening scenarios, and is fully compatible with mainstream global saw blade brands including Kinkelder, Leuco, Leitz and Freud.

Q3: What level of grinding accuracy does JX350 achieve?

A: JX350 achieves radial runout ≤0.03 mm under fine grinding mode. Equipped with a full-servo closed-loop control system, high-precision formed diamond spindles and QT500 ductile iron machine base, it maintains excellent precision stability and consistent grinding quality during long-term automatic batch production.

Q4: What are the differences among JX350, DM100, QH200 and JS350?

A: JS350 is a robotic double-side grinding machine used for synchronous dual-flank grinding and tooth thickness calibration. JX350, DM100 and QH200 belong to tooth top & face grinding machines for tooth profile finishing. The standard complete production flow is: Double-side grinding (JS350/MCC650E) → Top & face grinding (JX350/DM100/QH200). Difference details: DM100 is a high-precision full-servo manual-loading model (≤0.02 mm); QH200 is a hydraulic servo economical manual-loading model (≤0.03 mm); JX350 inherits stable top&face grinding accuracy and is upgraded with an XY-axis servo robotic arm to realize fully automatic loading and unloading, supporting unmanned intelligent production.

Q5: What is JX350’s warranty policy?

A: JX350 enjoys a 1-year full machine warranty, covering all full-servo components, robotic arm system and optional imported spindle. The QT500 ductile iron machine base provides lifetime structural warranty. Lingbang provides free professional machine operation and intelligent grinding technology training, lifetime technical support including full-time remote guidance and 48-hour on-site service response, as well as lifelong supply of genuine spare parts. Extended warranty solutions are available via inquiry at alex@lingbangjixie.com.

Q6: Can JX350 be used for old blade reconditioning & resharpening?

A: NO. JX350 is a professional industrial robotic gear grinder, used exclusively for the mass production and manufacturing of new saw blades. It has unified standard requirements for the blade’s substrate and welding. However, old saw blades have non-uniform standards, making standardization impossible.

Q7: What site preparation is required before installing JX350?

A: Prepare the following conditions for JX350 installation: ① 3-phase 380V industrial power supply (total power: 5.3kW); ② Sufficient independent installation space reserved for robotic arm operation and daily maintenance (machine weight: 1760kg); ③ Supporting grinding wheel consumables and standard industrial air source. Lingbang Machinery provides one-on-one installation guidance and professional factory layout planning suggestions.

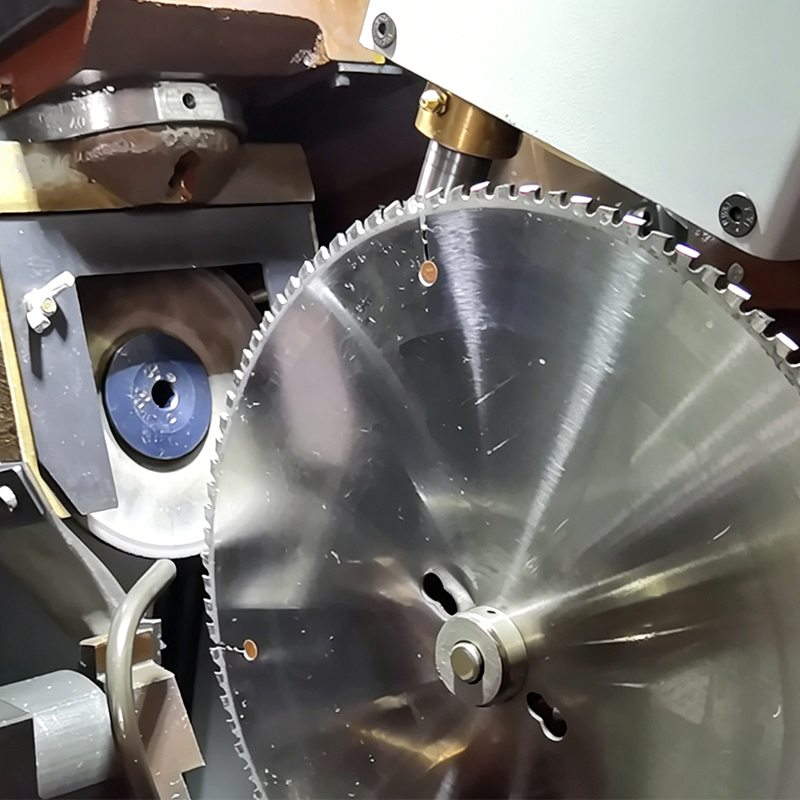

Q8:What is the working principle of JX350 top & face grinding?

A:The JX350 features a fully servo-driven enclosed environmentally friendly machine body with superior tightness, which effectively isolates grinding dust and oil contamination, safeguards internal electronic control and servo components, lowers equipment failure rates, and complies with industrial environmental protection standards. Equipped with high-precision spindles fitted with formed diamond grinding wheels, the machine independently and precisely grinds saw tooth flanks (cutting faces) and tooth tops (outer diameters). Adopting full-servo real-time feed control, it ensures uniform grinding quality for every single saw tooth and delivers stable cutting performance for finished saw blades. In addition, it is integrated with a high-precision XY-axis servo robotic arm and closed-loop servo control system to realize fully automatic intelligent loading and unloading, covering the entire process of picking, feeding and discharging saw blades. This configuration eliminates manual operation errors, supports 24-hour unattended continuous mass production, and fully adapts to the intelligent manufacturing requirements of large-scale and standardized circular saw blade production lines.

Robotic Top & Face Grinder

Product Positioning: JX350 is Lingbang’s full-servo CNC top & face grinding machine with a robotic arm for TCT saw blades (120–450 mm, up to 650 mm), radial runout ≤0.03 mm and 24/7 unattended operation.

Industries & Applications

JX350 targets automated top & face reconditioning:

Small-diameter blade automation: robotic loading/unloading.
Woodworking & aluminum blades: consistent top & face.
Metal saw blade regrinding: labor-saving, lights-out.
24-hour continuous grinding: enclosed, safe body.
Regrinding centers at scale: one operator, many machines.

Key Specifications

Parameter	Specification
Blade type	Top & face (robotic arm loading)
Blade diameter	120–450 mm (up to 650 mm)
Runout	Radial runout ≤0.03 mm
Servo power	5.3 kW
Machine weight	1,760 kg

Customer Value

4–6×

Blade reuse cycles

60–80%

Defect-rate reduction

25–35%

Regrinding cost share

* Figures reflect typical outcomes from Lingbang in-house regrinding deployments (clients processing 1000+ blades per month); actual gains vary by blade type and working conditions.

How to Choose JX350 Mechanical Arm Top and Face Grinding Machine vs Similar Models

vs DM100 / QH200: they are standard top & face grinders; JX350 adds a robotic arm for unattended loading of 120–450 mm blades.
vs JS350: JS350 does double-side with a robot; JX350 does top & face with a robot — choose by grinding type.

Selection advice: For automated top & face regrinding of small blades (≤650 mm) with minimal labor, JX350 is the pick; JS350 for robotic double-side.

Data Sources & Standards

Market: Grand View Research (2024) — global carbide circular saw blade market approx. USD 12.8 billion, Asia-Pacific >45%.
Precision: conforms to DIN 8083 and ISO 2935 high-end saw blade manufacturing standards.
Material: QT500 ductile iron bodies per GB/T 1348-2019 (used on multiple models).
Safety: enclosed guarding compliant with CE Machinery Directive 2006/42/EC.
Accuracy: evaluated against industry radial-runout standards for saw blades.

Lingbang Machinery — CNC circular saw blade grinders done right. Dongguan Lingbang Machinery Technology Co., Ltd. specializes in R&D and manufacturing of CNC saw blade grinding machines, offering the full MCC / DM / QH / MC / CX / JS / JX / GMP series for woodworking, aluminum, and metal cold saw applications, with in-house resharpening and mail-in service worldwide. Contact: alex@lingbangjixie.com ｜ +86-769-82863335 ｜ Huangjiang Town, Dongguan, Guangdong, China.

Economy Top & Face Grinder

Product Positioning: MC1600 (hydraulic-servo economy) is Lingbang’s cost-effective CNC top & face grinding machine for carbide saw blades (30–1600 mm), with radial runout ≤0.03 mm.

Industries & Applications

MC1600 economy targets affordable top & face reconditioning:

Woodworking & panel blades: wide 30–1600 mm coverage at value.
Aluminum & PVC saw blades: everyday regrinding.
Metal sheet & general blades: budget-friendly precision.
Small workshops: entry to CNC top & face.
Regrinding startups: lower capex, fast payback.

Key Specifications

Parameter	Specification
Blade type	Top & face (TCT circular saw blades)
Blade diameter	30–1600 mm
Runout	Radial runout ≤0.03 mm (at 500 mm)
Servo power	4.2 kW
Machine weight	1,950 kg

Customer Value

4–6×

Blade reuse cycles

60–80%

Defect-rate reduction

25–35%

Regrinding cost share

* Figures reflect typical outcomes from Lingbang in-house regrinding deployments (clients processing 1000+ blades per month); actual gains vary by blade type and working conditions.

How to Choose MC1600 Top and Face Grinding Machine (Hydraulic-Servo Economy) vs Similar Models

vs CX1600: CX1600 grinds cold saw blades; MC1600 (economy) covers 30–1600 mm top & face at lower cost.
vs DMX2500: DMX2500 handles large top & face (600–2500 mm); MC1600 economy is the cost-saving choice for standard ranges.

Selection advice: For an economical top & face grinder across a very wide 30–1600 mm range, MC1600 (economy) is the value pick; CX1600 for cold saw, DMX2500 for extra-large.

Data Sources & Standards

Market: Grand View Research (2024) — global carbide circular saw blade market approx. USD 12.8 billion, Asia-Pacific >45%.
Precision: conforms to DIN 8083 and ISO 2935 high-end saw blade manufacturing standards.
Material: QT500 ductile iron bodies per GB/T 1348-2019 (used on multiple models).
Safety: enclosed guarding compliant with CE Machinery Directive 2006/42/EC.
Accuracy: evaluated against industry radial-runout standards for saw blades.

alex@lingbangjixie.com

13556670126

alex@lingbangjixie.com

13556670126

Product List

Contact Us

JX350 Face & Top Grinding Machine – Industrial Grade with Robot Arm

📌 Core Summary

Product Overview

JX350 CNC Tooth Top & Face Grinding Machine (Robotic Industrial Model)

Convenience and stability of the robotic arm

Mechanical Specifications

Quality Standards & Certifications

About Lingbang Machinery

Product Comparison: JX350(Robotic Arm)s Competitors

Key Features

Main Configuration List

Customer Cases & Industry Applications

Applicable Industries

After-Sales Service

Scope of Application & Limitations

✅ Application

⚠️ Out of Scope

Frequently Asked Questions (FAQ)

Q8:What is the working principle of JX350 top & face grinding?

Industries & Applications

Key Specifications

Customer Value

How to Choose JX350 Mechanical Arm Top and Face Grinding Machine vs Similar Models

Data Sources & Standards

Industries & Applications

Key Specifications

Customer Value

How to Choose MC1600 Top and Face Grinding Machine (Hydraulic-Servo Economy) vs Similar Models

Data Sources & Standards

Related Products

MCC650E Double Side Grinding Machine

JS350 Double Side Grinding Machine – Industrial Full-Servo Type with Robot Arm

QH200 Auto Top & Face Grinding Machine

QM100 Auto Top and Face Grinding Machine

DM100 Face and Top Grinding Machine

Request Inquiry

Products

News

Request a Quote

Contact Us

Request Inquiry
