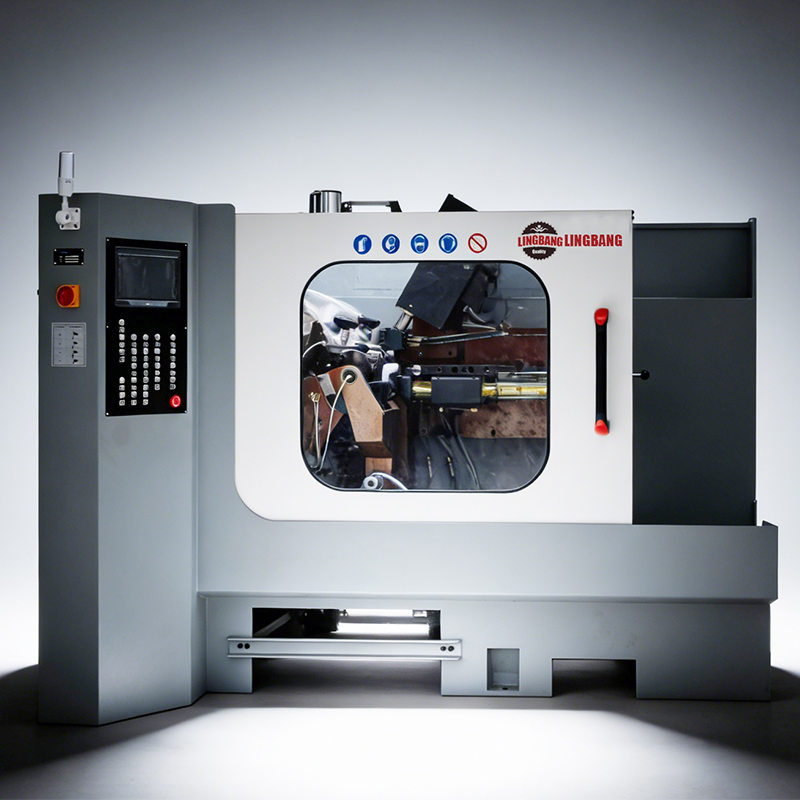

MCC1600 CNC Double-Side Saw Grinding Machineis a high-end CNC double-side saw blade grinding machine independently developed by Lingbang Machinery. It is granted a Chinese invention patent (No. CN107081478B) by the China National Intellectual Property Administration, and holds CE certification and import/export qualification. Adopting a full-servo electrical system + QT500 ductile-iron body + custom imported spindle, it simultaneously finishes both tooth flanks of carbide circular saw blades in a single clamping.Finish thickness tolerance ≤0.01mm, Axial runout ≤0.02mm, Machining diameter covers 300–1600mm, equipped with Mitsubishi PLC and Kinco HMI, supporting multiple programmable grinding processes, with 1-year machine warranty and lifetime structural warranty for the QT500 body.

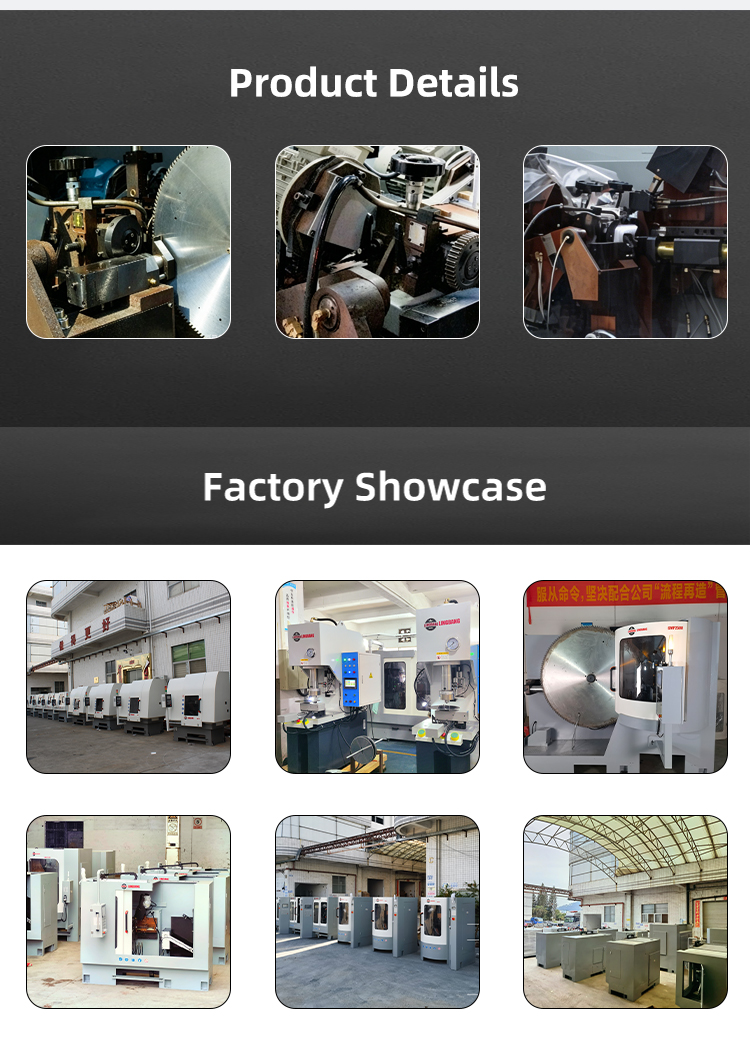

MCC1600 CNC Double-Side Saw Grinding Machine(MCC1600 CNC Double-Side Saw Grinding Machine) is a fully servo-driven CNC double-side saw blade grinding machine designed for the simultaneous precision grinding of both tooth flanks of carbide circular saw blades. It performs synchronous grinding of both tooth sides in a single clamping, precisely controlling tooth thickness and flank geometry—a key process machine for saw blade manufacturers and resharpening service centers.
According to the carbide saw blade industry standard (JB/T 5735-2018 Woodworking Carbide Circular Saw Blade), blade axial runout and tooth-thickness consistency are the core indicators of cutting accuracy and surface quality. With a finish thickness tolerance of ≤0.01mm and axial runout of ≤0.02mm, MCC1600 meets the stringent requirements of international standards such as DIN 8083 / ISO 2935 for high-end saw blade manufacturing.

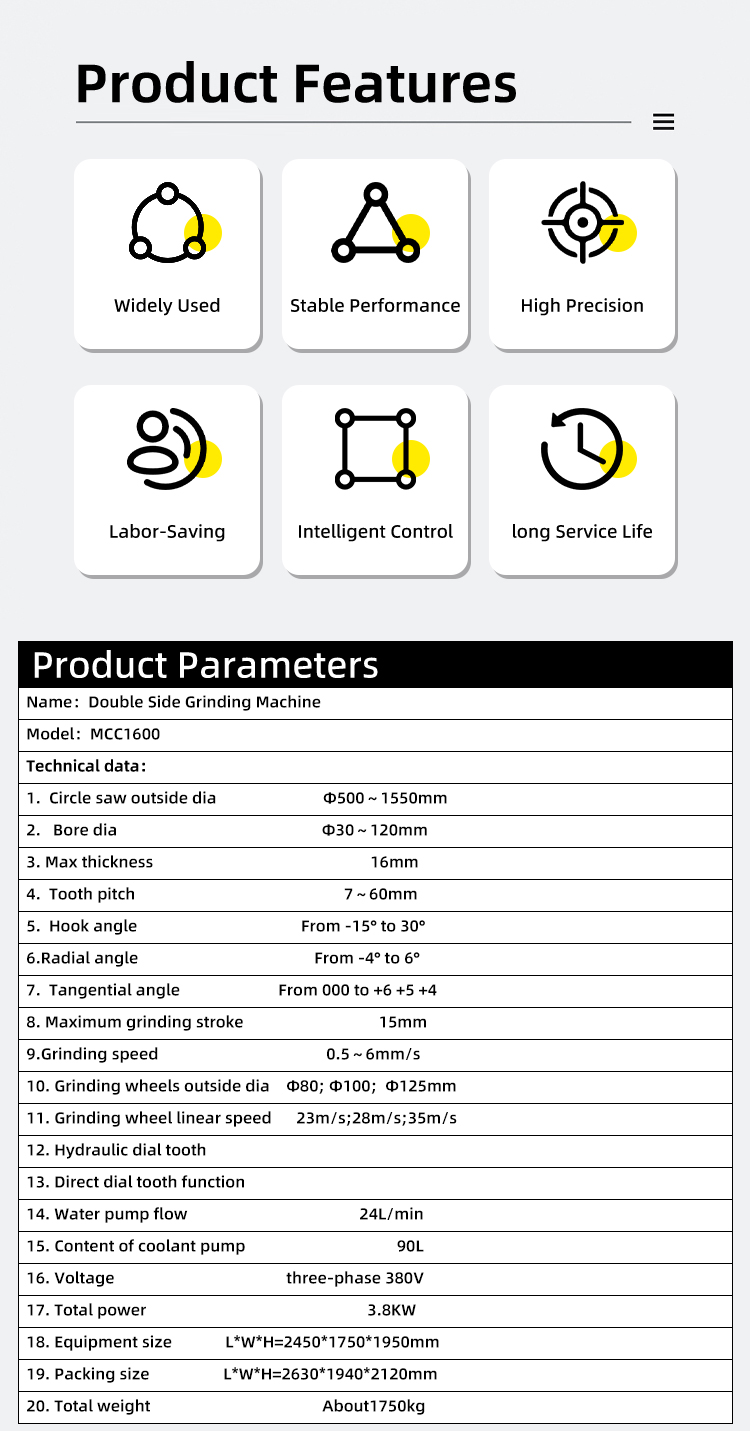

| Parameter | Technical Data |
|---|---|
| Blade Bore Diameter | 18–105 mm |
| Saw Blade OD Range | 300–1600 mm |
| Tooth Pitch | 7–100 mm |
| Rake Angle | -15° to +30° |
| Radial Angle | -4° to +6° |
| Tangential Angle | 0/0/0° to +6/+5/+4° |
| Grinding Wheel Size | 80 / 100 / 125 mm |
| Grinding Speed | 0.5–6 mm/s |
| Wheel Stroke | 15 mm |
| Machining Accuracy (Axial Runout) | ≤ 0.02 mm |
| Thickness Tolerance (Alloy Width) | ≤ 0.01 mm |
| Power Supply | 3-Phase 380 V |
| Total Power | 4.3 kW |
| Machine Dimensions (L x W x H) | 2250 × 1690 × 2050 mm |
| Net Weight | 1,950 kg |
Founded in 2014, Dongguan Lingbang Machinery Technology Co., Ltd. is an integrated R&D, manufacturing, sales and export enterprise for carbide circular saw blade grinding equipment. The company holds 40+ patents and has obtained ISO 9001:2015 certification (No. 51818Q03272ROM), CE Declaration of Conformity (No. CKEYS250829017), High-Tech Enterprise certification (No. GR202144002440) and import/export registration (Customs No. 441963C5G). Its products are certified by Bosch and Kanefusa, and exported to Southeast Asia, the Middle East and other overseas markets.
Company credit info: Qichacha Company Profile
| Dimension | MCC1600 | DM100 | QH200 | JS350 (Industrial) |
|---|---|---|---|---|
| Grinding Position | Both flanks simultaneously | Flank + Top | Flank + Top | Both flanks simultaneously |
| Working Range | 300–1600 mm | 120–650 mm | 120–800 mm | 120–800 mm |
| Finish Tolerance | ≤0.01 mm | ≤0.02mm | ≤0.03mm | ≤0.01 mm |
| Control System | Mitsubishi PLC + Kinco HMI | PLC Control | CNC Control | Mitsubishi PLC + Robotic Arm |
| Electrical System | Full-servo 4-axis closed-loop | Servo feed | Servo control | Full servo + robotic loading/unloading |
| Application | Double-side precision grinding | Tooth angle + OD grinding | Tooth angle + OD grinding | High-volume automated line |
| Warranty | 1-year machine, lifetime body | 1 Year | 1 Year | 1 Year |
Kinco touch screen with intuitive operation. After free training, new operatorscan operate independently within an average of 2 hours, without professional CNC programming background.

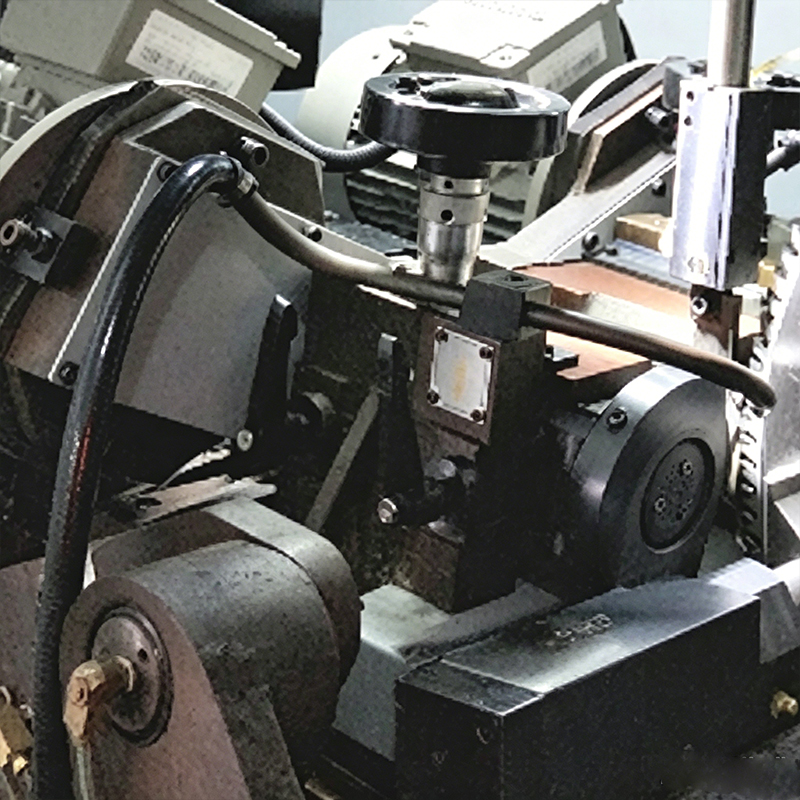

Servo tool setting, angle adjustment (-15° to +30°), tooth indexing and feed (0.5–6 mm/s), four-axis fully digital closed-loop control, repeat positioning accuracy ±0.005mm.
Tensile strength ≥500 MPa (GB/T 1348-2019), with vibration damping about 40%, better than ordinary gray cast iron, excellent dimensional stability, body covered by lifetime structural warranty.
High-precision, high-strength, high-rigidity imported spindle, radial runout ≤0.002mm,, ensuring consistent long-term grinding quality.
Multiple reciprocating grinding programs, open and programmable, supports storing 50+ sets of process parameters, spec change within 5 minutesto complete recall, flexibly configure process parameters.
Fully enclosed guard design, complies with CE machinery safety standard,, effectively controlling grinding dust and noise, ensuring operator safety and a clean workshop environment.
MCC650E serves saw blade manufacturing and resharpening enterprises across multiple provinces in China and overseas markets such as Southeast Asia and the Middle East:
MCC1600is a fully servo-driven CNC double-side saw blade grinding machine independently developed by Lingbang Machinery…
MCC1600 is suitable for double-side grinding of carbide circular saw blades with diameter 120–800mm and bore 12–105mm…
In finish mode, thickness tolerance ≤0.01mm and axial runout ≤0.02mm…
MCC1600 is a double-side grinder that simultaneously grinds both tooth flanks in a single clamping, controlling tooth thickness and flank geometry. MC1600 are top & flank grinders that grind the flank (cutting face) and top (OD). Process suggestion: double-side grinding first (MCC1600), then top & flank grinding (MC1600), controlling tooth thickness and tooth-angle/OD accuracy respectively, forming a complete saw blade grinding process chain.
Machine Warranty 1 Year (including full-servo components and imported spindle), QT500 ductile-iron body with lifetime structural warranty. Includes free operation training and grinding certification, lifetime technical support (remote/on-site response within 48h), lifecycle genuine parts supply. Contact alex@lingbangjixie.com for extended warranty options.
Yes. MCC1600 is suitable for both new blade production and old blade reconditioning (tooth replacement service). The full-servo programmable system stores 50+ grinding parameter sets; the intuitive HMI recalls parameters within 5 minutes per spec change, efficiently meeting the needs of resharpening centers handling many blade types daily.
When purchasing MCC1600, prepare: ① 3-phase 380V industrial power (total 4.7kW); ② installation space ≥3000×2800mm (including operation/maintenance); ③ floor load ≥2000 kg/m² (net weight 1,980kg); ④ compressed air 0.6–0.8 MPa; ⑤ grinding wheel consumables (80/100/125mm). Lingbang Machinery provides installation guidance and site planning advice.

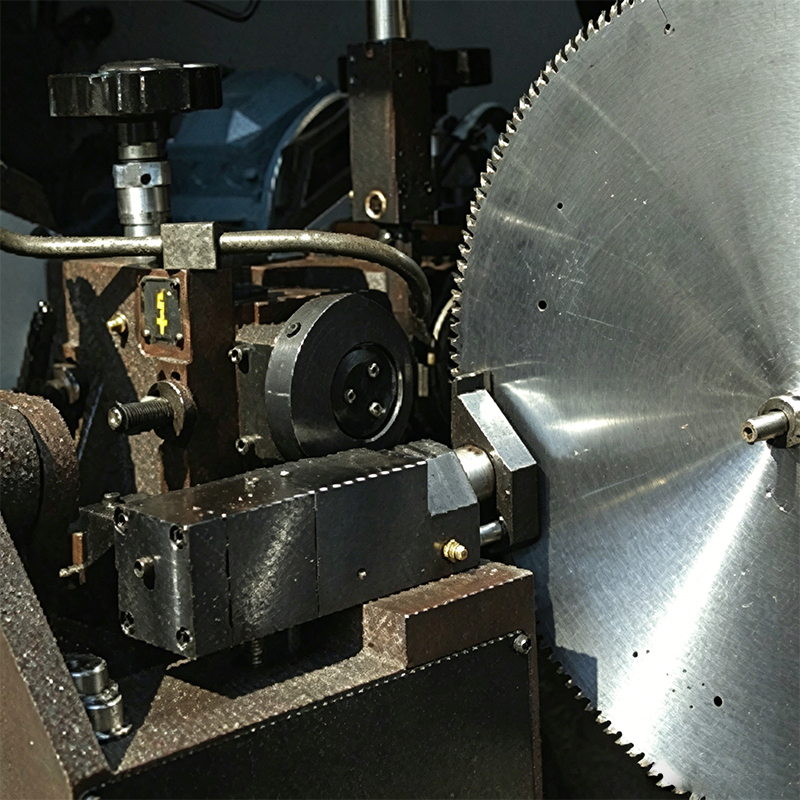

MCC1600 uses two symmetrically arranged high-precision spindles with profiled diamond wheels to synchronously grind both left and right tooth flanks in a single clamping. The full-servo system controls feed in real time (0.5–6 mm/s adjustable), ensuring equal grinding on both sides and achieving ≤0.01mm thickness tolerance.
