📌 Core Summary

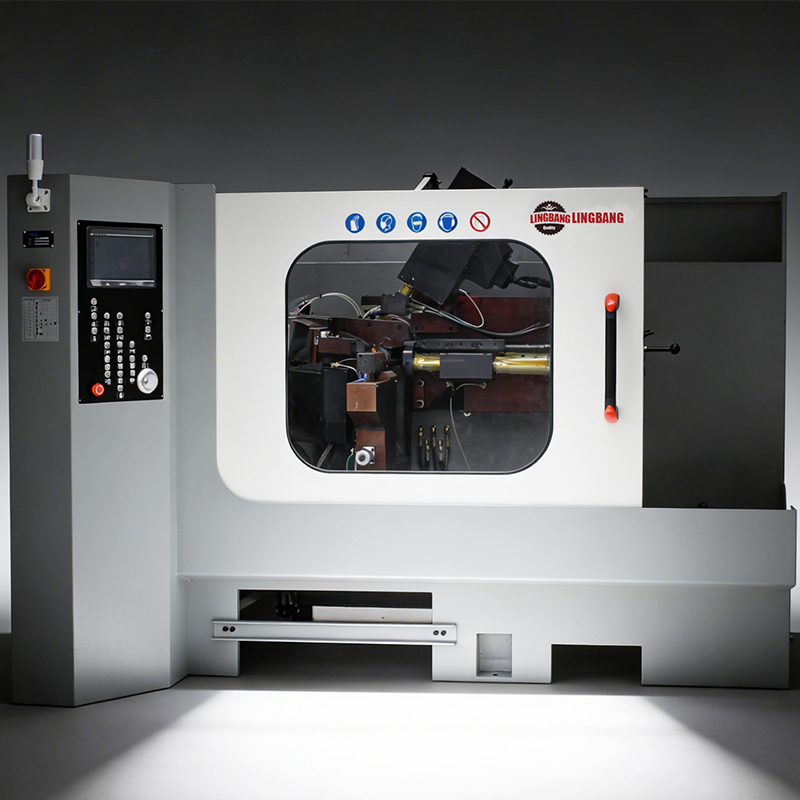

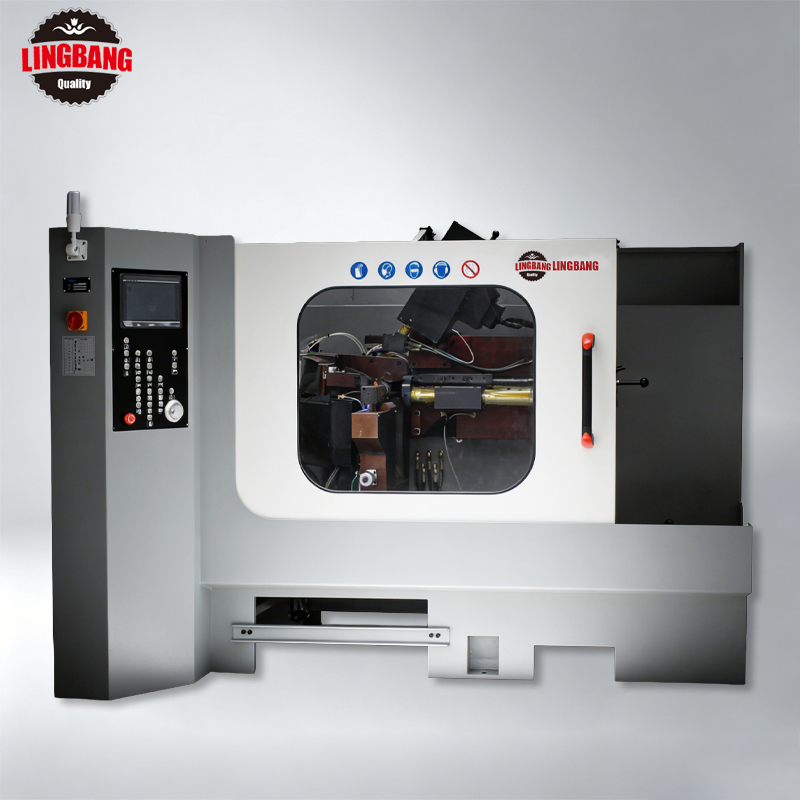

MC1600 CNC Saw Blade Top & Face Grinding Machine (Hydraulic Servo Economical Model) is a high-precision CNC grinding equipment for carbide circular saw blades independently developed by Dongguan Lingbang Machinery Technology Co., Ltd. It can independently complete all grinding processes in one setup, including top grinding, face grinding, trapezoidal tooth grinding and form grinding. Under fine grinding conditions, its radial runout accuracy reaches ≤0.03 mm (30 microns). Compatible with carbide circular saw blades ranging from 300 mm to 1600 mm in diameter, the machine is widely applied in solid wood furniture processing, aluminum alloy profile cutting, metal saw blade resharpening, and complete production lines for carbide saw blades. The machine is equipped with a servo feed system featuring servo feeding, servo-driven worm gear angle adjustment, hydraulic tooth shifting and hydraulic clamping. It supports digital angle setting and delivers consistent repeat positioning accuracy for mass production. An optional imported precision spindle is available with a 24-month warranty, compared to the industry standard 12-month warranty, which fully demonstrates the outstanding durability of core components.
📅 Updated: 2026-07-22
Model: MC1600 | Brand: Lingbang Machinery · Dongguan Factory Direct
About Lingbang Machinery
Founded in 2014, Dongguan Lingbang Machinery Technology Co., Ltd. is an integrated R&D, manufacturing, sales and export enterprise for carbide circular saw blade grinding equipment. The company holds 40+ patents and has obtained ISO 9001:2015 certification (No. 51818Q03272ROM), CE Declaration of Conformity (No. CKEYS250829017), High-Tech Enterprise certification (No. GR202144002440) and import/export registration (Customs No. 441963C5G). Its products are certified by Bosch and Kanefusa, and exported to Southeast Asia, the Middle East and other overseas markets.
Company credit info: Qichacha Company Profile
Product Comparison: MCC650E vs Competitors
| Dimension |
MCC650E |
DM100 |
QH200 |
JS350 (Industrial) |
| Grinding Position |
Both flanks simultaneously |
Face + Top |
Face+ Top |
Both flanks simultaneously |
| Working Range |
120–800 mm |
120–650 mm |
100–800 mm |
120–450 mm |
| Finish Tolerance |
≤0.01 mm |
≤0.02mm |
≤0.03mm |
≤0.01 mm |
| Control System |
Mitsubishi PLC + Kinco HMI |
PLC Control |
CNC Control |
Mitsubishi PLC + Robotic Arm |
| Electrical System |
Full-servo 4-axis closed-loop |
Servo feed |
Servo control |
Full servo + robotic loading/unloading |
| Application |
Double-side precision grinding |
Tooth angle + OD grinding |
Tooth angle + OD grinding |
High-volume automated line |
| Warranty |
1-year machine, lifetime body |
1 Year |
1 Year |
1 Year |
Process coordination suggestion: Use MCC650E first for double-side grinding to control tooth thickness, then DM100/QH200 for top/flank grinding to control tooth angle and OD precision—together they form a complete saw blade grinding line.
Applicable Industries
Aluminum Saw Blades
Aluminum profile/plate cutting
Ø300–700mm
Woodworking Blades
Furniture / Carbide
Ø100–800mm
Plastic / PVC
Plastic/PVC cutting
Ø250–600mm
Metal Saw Blades
Metal sheet cutting
Ø300–800mm
According to Grand View Research 2024, the global carbide circular saw blade market is about USD 12.8 billion, with Asia-Pacific holding 45%+ share, and grinding equipment demand keeps growing.
Scope of Application & Limitations
✅ Application
- Top and face precision grinding of carbide circular saw blades
- Saw blade diameter 300–160mm, bore 20–105mm
- New blade mass production (high-volume consistency)
- Old blade reconditioning / finish grinding after tooth replacement
- Aluminum, woodworking, PVC/plastic, metal cutting blades
- Compatible with Kanefusa/Kinkelder/Leuco/Leitz/Freud and other blade brands
⚠️ Out of Scope
- HSS saw blade grinding (requires different wheel & cooling)
- Diamond saw blade / PCD insert grinding
- Blades with diameter <120mm or >800mm
- Sites without 3-phase 380V industrial power
- Bandsaw/Frame saw blades and other non-circular tools
- Single-side grinding only (single-side model is more economical)
Machining Limit Note: Post-grinding radial runout of ≤0.02 mm is achievable under standard operating conditions: constant ambient temperature of 20±2°C, well-maintained grinding wheels and fully trained operators.Extreme temperature fluctuations, heavily worn grinding wheels or unskilled operation may result in dimensional deviation. It is recommended to deploy the machine in a temperature-controlled workshop and carry out regular calibration.
Frequently Asked Questions (FAQ)
Q1: What is the MC1600 Face and Top Grinding Machine?
A:MC1600is a hydraulic servo economical top & face grinding machine independently developed by Lingbang Machinery for carbide circular saw blades. It grinds both the tooth flank (cutting face) and the tooth top (outer diameter) of each tooth in a single clamping, ensuring consistent tooth geometry and stable cutting performance.
Q2: What types of saw blades can MC1600 grind?
A: MC1600 is designed for top and face grinding of carbide circular saw blades used in aluminum profile cutting, wood furniture processing, PVC & plastic cutting, metal sheet processing and carbide saw blade manufacturing. It is widely compatible with mainstream saw blade brands including Kinkelder, Leuco, Leitz and Freud.
Q3: What level of grinding accuracy does MC1600 achieve?
A: MC1600 reaches radial runout ≤0.03mm under fine grinding mode. Adopting full-servo closed-loop control and QT500 ductile iron machine base, it maintains stable precision for mass production.
Q4: What are differences between CX1600, DMX2500 and MC1600??
A: The CX1600 is a full-profile grinding machine, capable of grinding metal cold saw tooth profiles, as well as conventional aluminum alloy, woodworking and ordinary steel saw blades. The MC1600 is only applicable for woodworking and aluminum saw blades, without the functions of cold saw grooving, radius corner grinding and large negative rake angle grinding. The DMX2500 is an extra-large aluminum alloy saw blade grinding machine, mainly used for processing and mass production of super-large conventional TCT circular saw blades.
Q5: What is MC1600’s warranty policy?
A: 1-year full machine warranty (covers full servo components and optional imported spindle). The QT500 ductile iron machine base enjoys lifetime structural warranty.
We provide free machine operation and grinding technology training, lifetime technical support (remote support; on-site service response within 48 hours), and supply of genuine spare parts throughout the equipment service life. Please email alex@lingbangjixie.com to inquire about extended warranty solutions.
Q6: Can MC1600 be used for old blade reconditioning & resharpening?
A: Yes. MC1600 supports both new carbide saw blade production and used blade reconditioning. The user-friendly HMI enables quick parameter switching when changing blade specifications, making it ideal for resharpening service centers processing various saw blades every day.
Q7: What site preparation is required before installing MC1600?
A: Prepare the following conditions for MC1600 installation:
① 3-phase 380V industrial power supply (total power: 4.2kW);
② Sufficient installation space (machine weight: 1860kg);
③ Consumables such as grinding wheels.
Lingbang offers installation guidance and factory layout planning suggestions.
Q8: What is the working principle of MC1600 top & face grinding?

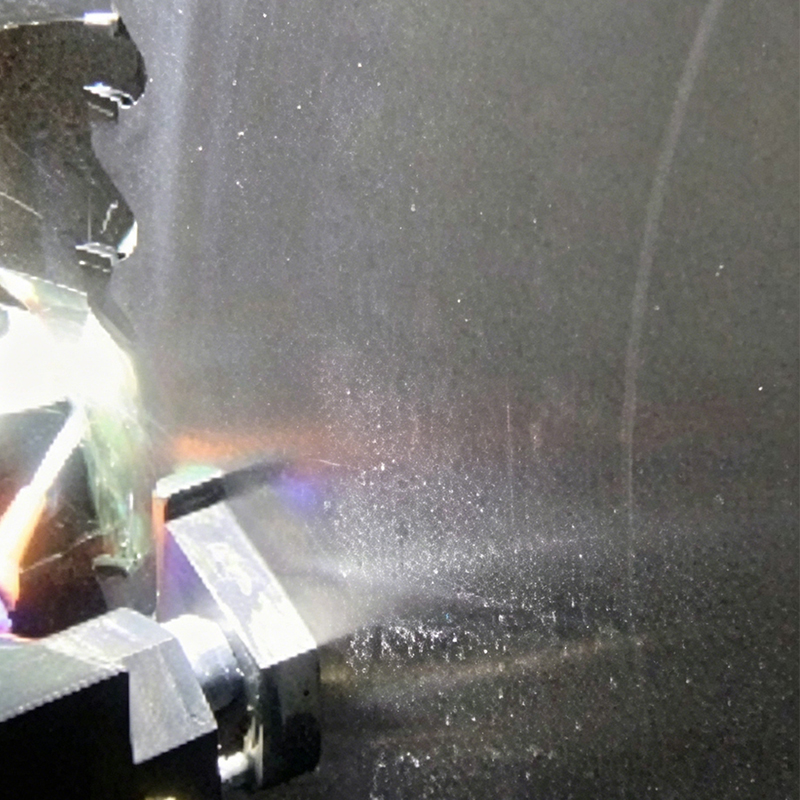

A: MC1600 is equipped with high-precision spindles fitted with formed diamond grinding wheels, which separately grind the tooth flank (cutting face) and tooth top (outer diameter). Full-servo real-time feed control guarantees uniform grinding quality for every saw tooth and stable cutting performance of finished blades.
Economy Top & Face Grinder
Product Positioning: MC1600 (hydraulic-servo economy) is Lingbang’s cost-effective CNC top & face grinding machine for carbide saw blades (30–1600 mm), with radial runout ≤0.03 mm.
Industries & Applications
MC1600 economy targets affordable top & face reconditioning:
- Woodworking & panel blades: wide 30–1600 mm coverage at value.
- Aluminum & PVC saw blades: everyday regrinding.
- Metal sheet & general blades: budget-friendly precision.
- Small workshops: entry to CNC top & face.
- Regrinding startups: lower capex, fast payback.

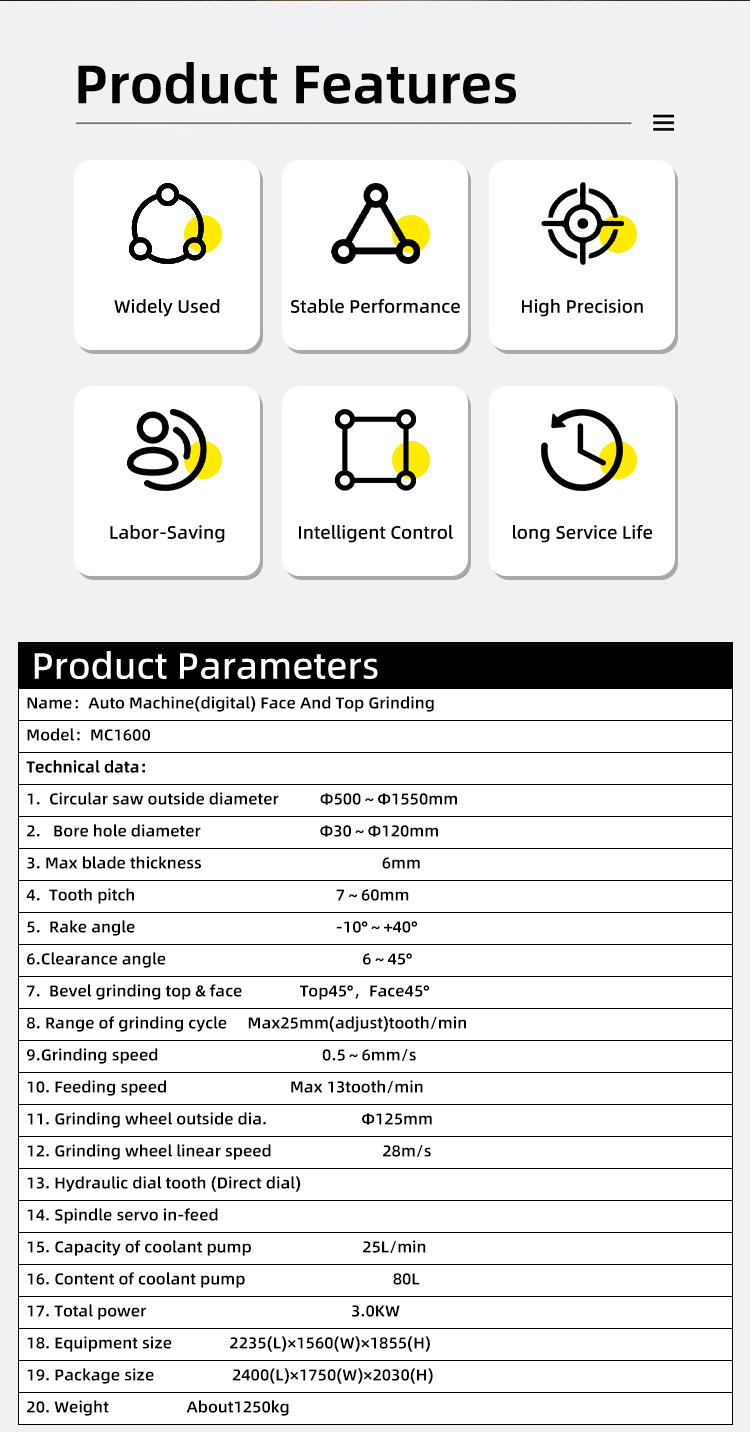

Key Specifications
| Parameter |
Specification |
| Blade type |
Top & face (TCT circular saw blades) |
| Blade diameter |
30–1600 mm |
| Runout |
Radial runout ≤0.03 mm (at 500 mm) |
| Servo power |
4.2 kW |
| Machine weight |
1,950 kg |
Customer Value
60–80%
Defect-rate reduction
25–35%
Regrinding cost share
* Figures reflect typical outcomes from Lingbang in-house regrinding deployments (clients processing 1000+ blades per month); actual gains vary by blade type and working conditions.
How to Choose MC1600 Top and Face Grinding Machine (Hydraulic-Servo Economy) vs Similar Models
- vs CX1600: CX1600 grinds cold saw blades; MC1600 (economy) covers 30–1600 mm top & face at lower cost.
- vs DMX2500: DMX2500 handles large top & face (600–2500 mm); MC1600 economy is the cost-saving choice for standard ranges.
Selection advice: For an economical top & face grinder across a very wide 30–1600 mm range, MC1600 (economy) is the value pick; CX1600 for cold saw, DMX2500 for extra-large.
Data Sources & Standards
- Market: Grand View Research (2024) — global carbide circular saw blade market approx. USD 12.8 billion, Asia-Pacific >45%.
- Precision: conforms to DIN 8083 and ISO 2935 high-end saw blade manufacturing standards.
- Material: QT500 ductile iron bodies per GB/T 1348-2019 (used on multiple models).
- Safety: enclosed guarding compliant with CE Machinery Directive 2006/42/EC.
- Accuracy: evaluated against industry radial-runout standards for saw blades.
